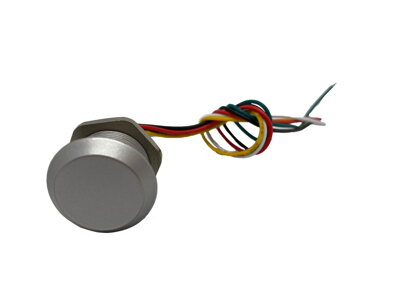

Mini RFID Reader

Mini RFID Reader

The integrated iButton-EM RFID reader is designed for use in a network and stand-alone access control systems. The integrated iButton-EM reader supports 13.56 MHz keys and connects to controllers using the Wiegand-26/34 protocol.

29 € incl. VAT

23,97 €

Availability and price: On query

Product rating: 4.17/5 (12x)

Your rating:

The mini integrated waterproof RFID reader is compatible with the Arduino, Raspberry Pi and other platforms. The bidirectional data transfer rate is up to 424 kbit / s. The RFID chips or cards reader has an integrated antenna and is equipped with an SPI communication bus. The charger is powered by a 3.3 VDC source.

The RFID reader is made to withstand all vandal attempts. Even in the case of external damage, it does not allow unauthorized access.

Technical specifications

  • Color: Silver
  • Card type: Mifare-IC
  • Voltage: DC8 ~ 18V; Current ≤ 100 mA
  • Ambient temperature: -30 ° C ~ 50 ° C
  • Reading range: 1 ~ 3.5 cm
  • Output format: Wiegand-26/34
  • Visual indication: 1 x red LED
  • Material: Polyamide (high temperature resistant, fire protection)
  • Dimensions: D26 x 22m
  • Weight: 0.02 kg

Security and certificates

The integrated reader supports CRYPTO1 encryption and detects errors in ISO14443A transmission.

The RFID reader has a standard 24-month warranty.
