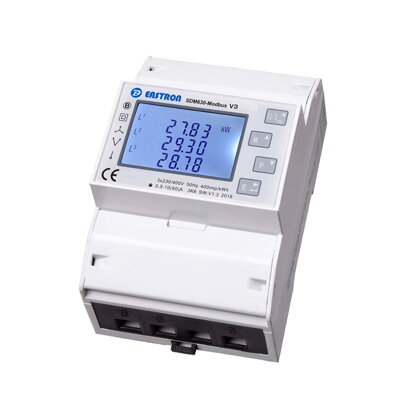

Eastron SDM630-MODBUS V3 Multifunction Energy Meter

Eastron SDM630-MODBUS V3 Multifunction Energy Meter

The EASTRON SDM630 Modbus V3 is a powerful and reliable electric energy meter designed for use in industrial, commercial, and residential buildings. With its Modbus RTU communication protocol, this meter can be easily integrated into various types of electrical installations and building automation systems.

162,80 € incl. VAT

134,55 €

185 € incl. VAT Discount 12%

Availability and price: In stock
in stock: 18 pcs

Producer: Eastron

Product rating: 3.89/5 (36x)

Your rating:

Featuring a wide range of measured parameters, including current, voltage, power, frequency, power factor, energy, harmonic distortion, and more, the EASTRON SDM630 Modbus V3 is ideal for monitoring energy consumption and analyzing data over time.

With high measurement accuracy of 0.5% and easy installation on a DIN rail, the EASTRON SDM630 Modbus V3 is a versatile choice for a variety of applications in industrial, commercial, and residential buildings. It meets CE, UL, and RoHS safety standards, ensuring reliability and safety during use. Use the EASTRON SDM630 Modbus V3 for efficient and cost-effective monitoring of electric energy consumption in your building.

Technical specifications

  • Communication Protocol: Modbus RTU
  • Power Supply Voltage: 90-600V AC
  • Current Measurement Range: 0-100A AC
  • Voltage Measurement Range: 0-600V AC
  • Power Measurement Range: 0-60kW
  • Energy Measurement Range: 0-999999.9 kWh
  • Power Factor Measurement Range: -1 to 1
  • Frequency Measurement Range: 45-65Hz
  • Harmonic Distortion Measurement Range: THD (1-31)
  • Measurement Accuracy: 0.5%
  • Display: 3.2-inch LCD with blue backlight
  • Interfaces: USB, RS485, Modbus RTU
  • Operating Temperature: -10°C to 60°C
  • Mounting: DIN rail
  • Dimensions: 96 x 96 x 65 mm
  • Weight: 0.4 kg

The EASTRON SDM630 Modbus V3 electric energy meter meets CE, UL, and RoHS safety standards.
