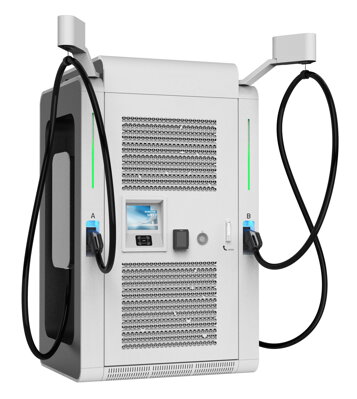

The fast charging station EVEMOVE II - DC 240D / 280D / 320D / 360D kW is made of quality materials, is durable and, thanks to protection at the IP 54 level, is suitable for outdoor use, even in adverse conditions.
The main emphasis is on the safety of the electric car, its crew and the charging station itself, so it is equipped with protection of the main input protection RCD-A. The station is equipped with DC double charging cable CCS.
For easy and intuitive operation, the station has an 10.4 inch touch screen with a user-friendly interface. The charger offers multiple charging modes that can be selected based on the total time, amount, power or battery charge status.
Technical Specifications
- Charging cable: double CCS 5meter
- Input voltage range: 362~438V AC
- Rated input voltage: AC400V (3P/N/PE)
- Rated input current: 370A / 430A / 490A / 552A
- Maximum output current: Double connectors MAX: 200A + 200A
- Maximum output power DC: 240kW / 280kW / 320kW/ 360kW
- Output voltage range DC: CCS(150-1000V)
- Efficiency: ≥95%
- Comunication: Ethernet and WiFi or 4G (optional)
- Charging mode: APP / RFID / Plug and Charge
- support OCPP 1.6JSON
- Display: 10,4 " touch screen
- Emergency stop: Yes
- Protection degree: IP54
- Working temperature: -25 ° C to + 50 ° C
- Standy power consuption: <100W / <120W / <140W / <160W
- Size (W/H/D): 1750 / 2100 / 1372mm
- Weight: 625kg / 640kg / 655kg / 670kg
- Certificate: CE
Security and certificates
All charging stations are tested to ensure their safety. The new EVEMOVE II charging station model is IP54 certified, making it suitable for outdoor use.
Safety is ensured thanks to the output contactor, fuses, EPO, SPD, MCB, leakage switch and insulation detector protection.
The charging station has a standard 24 month warranty.
