PHOENIX CONTACT charging kit HOME TWIN with charging AC power sockets Type 2 | 32A | 3phase | 22 kW | 0,7m

PHOENIX CONTACT charging kit HOME TWIN with charging AC power sockets Type 2 | 32A | 3phase | 22 kW | 0,7m


The TWIN charging technology kit starter kit allows easy assembly of a charging station for two electric cars in Mode 3, Case B. It is used to charge electric cars with alternating current. The charging station is equipped with two sockets! The set meets all the requirements of the European standard IEC 62196-2 and IEC 61851-1.

1606,50 € incl. VAT

1327,69 €

1890 € incl. VAT Discount 15%

Availability and price: Last piece
in stock: 1 pcs

Producer: Phoenix Contact

Product rating: 4.25/5 (8x)

Your rating:

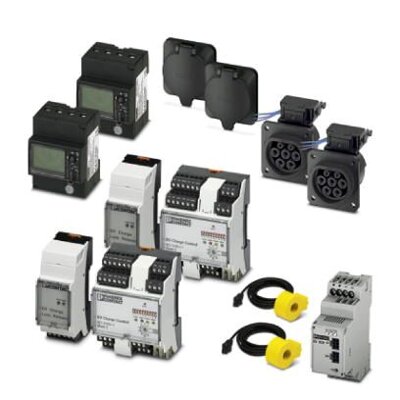

The TWIN charging technology kit with sockets contains sample assembly and installation instructions for electric vehicle charging stations (EVSE), including other recommendations, necessary components (charging contactor, safety device), for charging electric vehicles with alternating current. The charging sockets are equipped with 12 V locking actuators and IP54 self-closing protective caps.

The differential leakage current module is a 2-channel RCM. The charging station from the TWIN package supports 2 charging points. To release the interlock in the event of a mains failure, a separate module with a function of activating the interlock actuator is located in the charging station to disconnect the infrastructure charging connector and the infrastructure charging socket. The charging control unit is AC Advanced.

Installation and commissioning may only be carried out by electricians, who must observe the applicable national regulations!

Technical Specifications

  • AC charging current type (3 phases)
  • Charging power 22 kW
  • Charging current 32 A
  • Charging voltage 400 V AC
  • Line length 0.7 m
  • Blocking actuator along the entire length of the line: 0.50 m
  • Differential leakage current module 2-channel RCM
  • Energy measuring instruments: yes

The individual components of the HOME Charging Kit can be found here.

Security and certificates

The starter pack complies with the European specifications IEC 62196-2 and IEC 61851-1 for charging electric vehicles with a Type 2 connector. If required by law, the individual components are CE marked. The charging point is equipped with a protective cover with certified protection at the IP54 level.

The HOME Charging Kit comes with a standard 24 month warranty.
