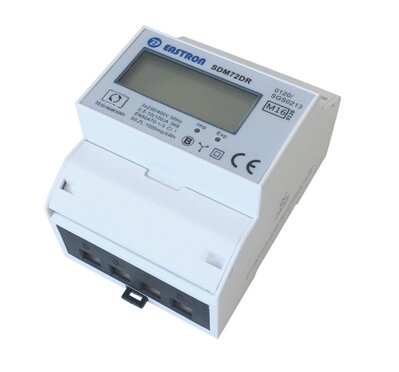

Eastron DIN Rail Power Meter SDM72DR

 Eastron DIN Rail Power Meter SDM72DR

Product rating: 4.8/5 (5x)

Your rating:

Three-phases, single-tariff electricity meter for DIN rail with MID certificate. Direct measurement, accuracy class 1

59 € incl. VAT

48,76 €

Availability: In stock
in stock: 4 pcs

Producer: Eastron

Product question

Three-phase digital electricity consumption meter on DIN rail SDM72DR with MID certificate. It is a single tariff electricity meter. This device measures and displays active energy (kWh) and power (W). If necessary, the active energy value can be deleted.

MID certificate (according to the European Directive for Measuring Instruments 2004/22 / EC) - the electricity meter can be used as a specified meter for measuring active energy intended for use in residential and commercial premises and light industry.

A wattmeter (energy consumption meter) is used to measure electricity in real time and allows you to clearly detect, measure and monitor the electricity consumption of electrical appliances. We place the consumption meter on a DIN rail and connect the appliance for which we want to monitor consumption.

No more guessing which appliance is unscrupulous. This excellent helper for every home, office or operation is designed to control and monitor electricity consumption using the latest technology, which guarantees high accuracy and easy operation. Check what consumption your three-phase appliances have too!

Properties:

  • DIN rail mounting
  • Wide range of current measurements
  • Small dimensions, low weight
  • Low energy consumption
  • Easy installation

Technical parameters:

  • working humidity:? 90%
  • storage humidity:? 95%
  • working temperature: -20 ° C to + 55 ° C
  • storage temperature: -40 ° C to + 70 ° C
  • international standard: IEC 62053-21
  • protection against moisture and dust: IP51
  • meter protection class: II
  • maximum voltage (Un): 230V / 400V AC (3 ~)
  • working voltage: 80% ~ 120% Un
  • base current (Ib): 10A
  • max. rated current (Imax): 100A
  • operating current range: 0.4% Ib ~ Imax
  • current surge: 30 Imax for 0.01 s
  • working frequency range: 50-60 Hz
  • Internal power consumption:? 2W / 10VA / phase
  • pulse output: 1000imp / kWh
  • dimensions: height 100mm, width 72mm, depth 66mm
  • weight: 500g (net)

Insulation capabilities:

  • AC overvoltage: 4KV for 1 minute
  • voltage surges: 6KV - 1,2µS / 50µS

Parameters:

  • Design: Digital 3 phases
  • Current: 100A
  • Mounting: On DIN rail
  • Supply voltage: 300 / 520VAC 3 phases
  • Dimensions: 100x126x65mm
  • Manufacturer part number: 630D
  • Weight: 500g
  • Package: 1pc
