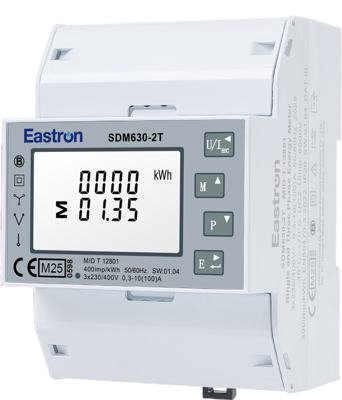

The Eastron SDM630-2T is a high-end three-phase multifunction energy meter suitable for accurate power measurement in industrial, commercial, and residential environments. It is designed for direct current measurement up to 100 A without the need for external current transformers and supports 3-phase 4-wire, 3-phase 3-wire, and single-phase 2-wire configurations.
The device enables detailed monitoring of all major electrical parameters: active, reactive, and apparent power (W, Var, VA), voltage, current, power factor (PF), frequency, total harmonic distortion (THD), maximum demand (DMD), and energy consumption in both import and export directions (including net kWh). It also supports dual source metering, making it ideal for hybrid systems.
A backlit LCD display with navigation buttons provides clear, on-site parameter visualization. Two passive pulse outputs allow data transmission to other monitoring systems. With its RS485 Modbus RTU interface, the meter is ready for integration into energy management systems, SCADA, or building automation platforms.
High accuracy, low internal power consumption, wide voltage range, and MID 2014/32/EU certification ensure suitability for billing applications and regulatory compliance.
Technical specifications
- Parameter Value
- Measuring mode 3P-4W, 3P-3W, 1P-2W
- Maximum current 100 A (direct measurement)
- Voltage range 3×230/400 V AC (85–276 V AC)
- Frequency 50/60 Hz
- Current range 0.3–10(100) A
- Base current (Ib) 10 A
- Maximum current (Imax) 100 A
- Accuracy class Class 1 (IEC 62053-21), Class B/C (EN50470-3)
- Power consumption ≤ 2 W / 10 VA per phase
- Display Backlit LCD
- Communication RS485 Modbus RTU
- Pulse outputs 2× passive (1 configurable, 1 fixed 400 imp/kWh)
- Dual source metering Supported
- Bidirectional metering Yes (Import / Export / Net kWh)
- Protection class IP51 (indoor use)
- Operating temperature −40 °C to +70 °C
- Relative humidity Max. 95% non-condensing
- Mounting DIN rail (72 mm width, 100 mm height, 66 mm depth)
- Compliance MID 2014/32/EU, EN50470-3:2022, IEC 62053-21, EN 61010-1
