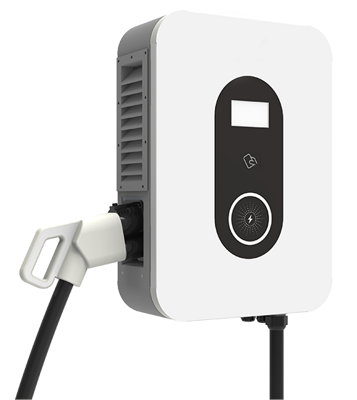

The fast charging station EVEMOVE 20kW is made of quality materials, is durable and, thanks to protection at the IP 54 level, is suitable for outdoor use, even in adverse conditions. The station can be installed on a wall, on a stand or it is possible to order portable accessories.
The main emphasis is on the safety of the electric car, its crew and the charging station itself, so it is equipped with protection of the main input protection RCD-A, optionally RCD-B when configuring AC charging. The station is equipped with DC charging cable CCS or CHAdeMO.
For easy and intuitive operation, the station has an 4,3 inch touch screen with a user-friendly interface. The charger offers multiple charging modes that can be selected based on the total time, amount, power or battery charge status.
Technical Specifications
- Charging cable: CCS Type 2 (default)
- Maximum output current: CCS 50A
- Maximum output power: 20kW
- Output voltage range: CCS (150-1000V)
- Frequency: 50Hz/60Hz
- Input voltage: 320~480V AC
- Rated input voltage: 400V AC
- Comunication: Ethernet, WiFI, 4G (optional)
- Display: 4,3 " touch screen
- Emergency stop: Yes
- Protection degree: IP54
- Working temperature: -25 ° C to + 50 ° C
- Standy power consuption: <25W
- Efficiency: ≥95%
- Size: 450x670x206mm
- Cable Length: 5 meter
- Weight: 36Kg
- Certificate: CE EMC classB
Security and certificates
All charging stations are tested to ensure their safety. The EVEMOVE charging station is certified to IP54, making it suitable for outdoor operation.
Safety is ensured thanks to the output contactor, fuses, EPO, SPD, MCB, leakage switch and insulation detector protection.
Delivery time after purchase is between 8-10 weeks depending on variant.
The charging station has a standard 36 month warranty.
