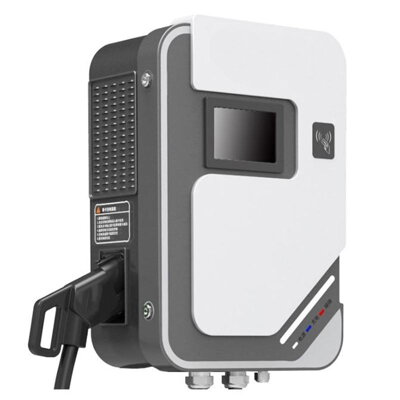

The fast charging station EVEMOVE DC 40S is made of quality materials, is durable and, thanks to protection at the IP 54 level, is suitable for outdoor use, even in adverse conditions. The station can be installed on a wall, on a stand or it is possible to order portable accessories.
The main emphasis is on the safety of the electric car, its crew and the charging station itself, so it is equipped with protection of the main input protection RCD-A, optionally RCD-B when configuring AC charging. The station is equipped with DC charging cable CCS or CHAdeMO or a double CCS.
For easy and intuitive operation, the station has an 7 inch touch screen with a user-friendly interface. The charger offers multiple charging modes that can be selected based on the total time, amount, power or battery charge status.
Technical Specifications
- Charging cable: CCS Type 2, CHAdeMO or double CCS (2x20kW)
- Maximum output current: 100A
- Maximum output power: 40 kW (2x20kW)
- Output voltage range: 150~1000V DC
- Rated input voltage> 400V AC
- Input Frequency: 50Hz / 60Hz
- Input voltage: 260~530V AC
- Comunication: Ethernet, WiFI, 4G (optional)
- support OCPP 1.6 J
- Display: 7 " touch screen
- Emergency stop: Yes
- Protection degree: IP54
- Efficiency: ≥95.2%
- Working temperature: -25 ° C to + 50 ° C
- Standy power consuption: <25W
- Size: 548x775x294mm
- Weight: 65 Kg
- Certificate: CE EMC class A
Security and certificates
All charging stations are tested to ensure their safety. The EVEMOVE charging station is certified to IP54, making it suitable for outdoor operation.
Safety is ensured thanks to the output contactor, fuses, EPO, SPD, MCB, leakage switch and insulation detector protection.
The charging station has a standard 24 month warranty.
