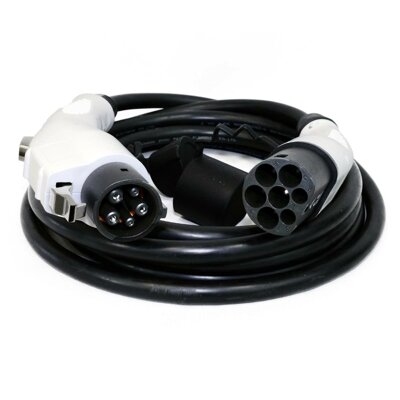

Duosida 20A Type 1 charging cable is designed for charging in mode 3 from all private and public AC stations. Both connectors have an ergonomic shape for easy and comfortable handling and connection. When the cable is connected, it is protected against the ingress of particles and water. The protective caps are IP54 certified and provide protection against ingress of dust.
The connectors of the Type 1 charging cable are made of solid thermoplastic, which is non-flammable and resistant to scratches, pressure and shocks. The outer sheath of the cable is made of thermoplastic polyurethane (TPE-U), whose properties include flexibility, long life and resistance to scratches and wear. Thanks to high-quality materials, the cable can withstand more than 10,000 connection cycles.
Protective caps should be used whenever the 20A charging cable is not connected, as they guarantee protection against contamination. After use, the cable must be wound correctly and then inserted into a bag. This significantly (!) increases its service life.
You will receive a bag with every purchase of a cable as a gift.
- Plug type 1 (J1772) (electric car)
- Socket type 2 (mennekes) (charging station)
- Mode 3 cable for connection to charging stations
- Maximum current: 20A
- Maximum voltage: 240V
- Maximum charging power: 5 kW (1 phase)
- Operation temperature: -30 ° C to 50 ° C
- Cable length: 5 and 8 m
- Black color with gray and silver elements
Detailed technical specifications and manuals are listed and downloadable here.
Security and certificates
All charging cables are tested to ensure their safety. When connected, the protection is IP44, the certified protection when using a protective cover is IP54. The connectors comply with IEC 62196-2 and SAE J1772 standards.
The charging cable is provided with a standard 24-month warranty.
If you are hesitant about whether this connector of the charging cable is for you, you can search for our car in our database or you can contact us at any time. In the section Basics of electromobility you will also find an article about individual types of connectors.
