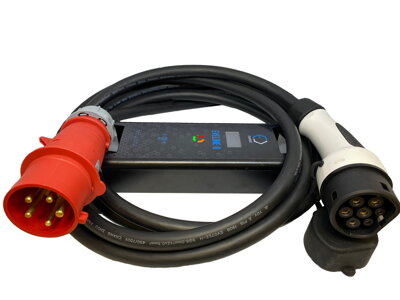

The EVELINE portable charger is suitable for cars that use a CEE 5-pin socket on the road to charge. It allows you to significantly speed up charging and set the current with which the car will be charged. You can change the settings by attaching an RFID chip or double-tapping the icon below the screen. For chargers with a maximum current of 16A, it is possible to choose between 6, 8, 10, 13 or 16A. For chargers with a maximum current of 32A, option 6, 10, 16, 20, 25 and 32A can be selected. The display shows important information about the charge status such as total time, power, temperature and voltage.
The charger is equipped with protective elements that ensure complete safety of the car and crew. The most important of these is the built-in Type B circuit breaker and the RCD (FI) A-EV residual current device with 6mA DC current detection, which ensures immediate interruption in the event of incorrect charging. Furthermore, the charger is protected against mechanical damage and contamination, IP44 protection when connected, IP54 when using the protective caps and IP67 protection when the connectors are completely disconnected, which means that it is 100% waterproof and weather resistant and can be used even in harsh working environments.
The intelligent charger is equipped with the popular Duosida cable in lengths of 5 and 8 meters, thanks to which it can meet all needs. When handling the cable, the protective caps should be used each time the cable is not connected.
You will receive a bag with every purchase of a cable as a gift.
- Type 2 connector (electric car)
- CEE type connector 5-pin 16A or 32A (mains)
- Maximum current: 32A (1 phases)
- Maximum voltage: 250V
- Maximum charging power: 3,7 - 7,4 kW
- Operating temperature range: -40 ° C to 75 ° C
- Charger size: 240 x 90 x 60 mm
- Cable length: 5 and 8 meters
- Black colour
Security and certificates
All smart portable chargers are tested to ensure their safety. The protective cover is IP54 certified. The charger in the disconnected state is certified to the IP67 level. The Eveline charger meets the international standards IEC 61851-1 and IEC 62196-2. In the European Union, it is certified for use with CE and TUV.
The smart charger is provided with a standard 24-month warranty.
If you hesitate whether this charger with a type 2 connector is suitable for your car, you can find your car in our database and find the type of its connector there, or you can contact us at any time.
In the basics of electromobility section, you will find an article about different types of connectors and their properties.
