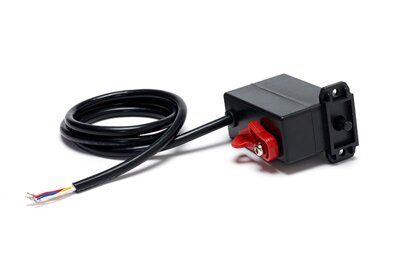

Interlocking actuator for Socket Type 2 female

Interlocking actuator for Socket Type 2 female

Electromagnetic interlocking actuator for socket locks the connected plug during charging, and thus prevents its disconnection. It increases the safety of the car and the crew and, thanks to its size for high traction it protects the cable from theft.

31,46 € incl. VAT

26 €

Availability and price: On query

Producer: Duosida

Product rating: 4.26/5 (19x)

Your rating:

The lock can be flexibly installed on any EV socket Type 2. Activation of the lock takes place automatically during charging, deactivation is performed using the controller. In case of problems, the lock can be unlocked manually by the owner. The lock lasts more than 50,000 connection cycles.

The lock is placed in an unopenable box, which is dustproof and waterproof (certified protection IP55). It meets all the requirements prescribed by the test and certificate for JDQ 53.3 electronic devices, which guarantees its resistance to vibration, moisture, dust and salt spray. It is equipped with a flammability retardant approved by the UL94 HB certificate.

Technical Specifications

  • Model: JP-EL-002
  • Maximum current: 3A
  • Working voltage: 12V
  • Operating temperature range: -30 ° C to + 50 ° C
  • Material: thermoplastic
  • Black colour

Security and certificates

All locks are tested to ensure their safety. The protective cover protects the mechanism at the IP55 level. It is certified with CE, TUV and UL 94 HB in the European Union. It is certified for JDQ 53.3 requirements.

The lock is provided with a standard 24-month warranty.

Interlocking actuator for Socket Type 2 female

jos leurs, 8. 2. 2022 11:25:04

Hi will this lock fit on the following socket: EV charging Socket TYPE 2 male (car-side) 32A - 22kW, if not do you have a lock for this type off socket? many thanks Jos Leurs

Re: Interlocking actuator for Socket Type 2 female

Radim EV Expert, 9. 2. 2022 10:21:29

Hello, yes this lock should fit the EV Charging Socket TYPE 2 male (car-side) 32A - 22kW.
