EV charging Plug TYPE 2 Female (Car-Side) 32A - 22kW

EV charging Plug TYPE 2 Female (Car-Side) 32A - 22kW

Product rating: 4.71/5 (24x)

Your rating:

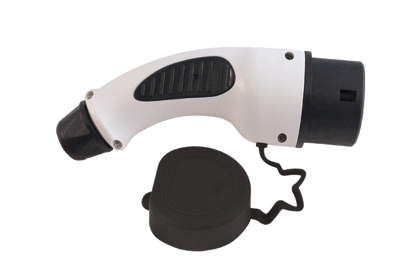

The type 2 charging plug is made of high-quality thermoplastic with a UL94 V-0 flammability insulator. It is suitable for charging with a current of 32A with a maximum power of 22 kW. Its ergonomic shape ensures comfortable and safe handling. It has CE, TUV and UL 94 certificates.

92,15 € incl. VAT

76,16 €

97 € incl. VAT Discount 5%

Availability: In stock
in stock: 2 pcs

Producer: Duosida

Product question

The female Type 2 charging connector is equipped with an IP44-certified cover, which provides protection against the ingress of bodies larger than 1 mm and against the ingress of water splashing from all sides. When connected, the protection of the connector is IP54, which ensures its dust resistance.

The connector meets all the requirements prescribed by the test and certificate for electronic devices JDQ 53.3, which guarantees its resistance to vibration, moisture, dust and salt spray. At the same time, it is only equipped with a flammability insulator approved by the UL94 V-0 certificate, which can stop the spread of flame within 10 seconds.

Technical Specifications

  • Type 2 female (IEC 62196-2), model MRCP-L
  • Maximum current: 32A
  • Maximum charging power: 22 kW
  • Operating temperature range: -30 ° C to + 50 ° C
  • Skeleton material: Thermal plastic
  • Contact: Copper alloy, silver or nickel plating
  • Sealed sealing collar: rubber or silicone rubber
  • White color with black elements

Security and certificates

All connectors are tested to ensure their safety. The protective cover is IP44 certified. The connector in the connected state is protected at the IP54 level. The connector meets SAE J1772 international standards. For use in the European Union, it is certified with CE, TUV and UL 94. It is certified for the requirements of JDQ 53.3.

The charging plug is provided with a standard 24-month warranty.

If you hesitate whether this connector is suitable for your car, you can go to our database of electric cars, where you will find your model and the type of its connector, or you can contact us at any time.
