EVECUBE C - 22kw AC charging station (OCPP 1.6 + Smart WebServer + RFID + consumption measurement)

EVECUBE C - 22kw AC charging station  (OCPP 1.6 + Smart WebServer + RFID + consumption measurement)

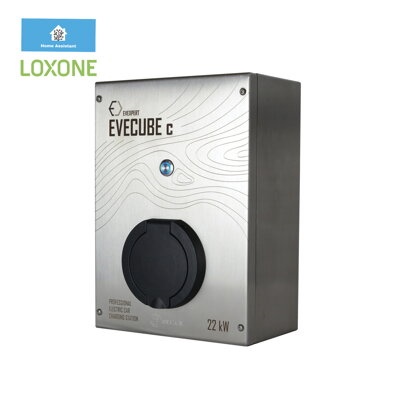

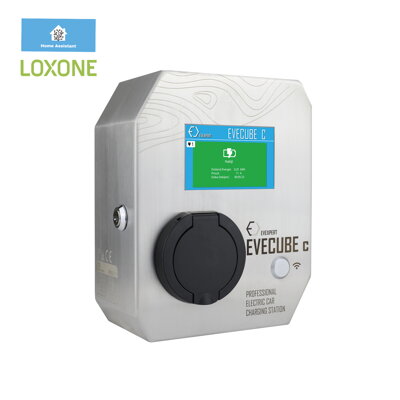

Second generation of high performance ultra low profile charger (Mod 3). The EVECUBE C intelligent charging station is made of stainless, laser-engraved steel and allows charging from 1.3 kW to 22 kW. It is also suitable for commercial use, as it is already integrated into the EVE platform, which can be downloaded for remote management and invoicing of charging stations, including a payment gateway for online payments directly from the phone. The standard warranty of the charger is 3 years.

Availability: Last piece

Producer: EV Expert

Product rating: 4.86/5 (36x)

Your rating:

The EVECUBE C intelligent AC charging station is equipped with a smart WebServer connected to your local IP address, including a web application for easy remote control, statistics and its management. It allows to set the charging time, power and schedule, according to customer's tariffs. Wallbox connects directly to the EVE.Charge platform, which is a unique solution for professional and commercial use of the station. Just plug in the wallbox and it's ready to use.

The Webserver system and the EVE.Charge platform were developed in the Czech Republic and represent an advanced and unrivaled solution. The extra module can monitor the total energy consumption of the household and limit the charging power accordingly, so that it does not exceed the nominal reserved power input. The EVE.Charge platform enables remote administration, invoicing and access to the payment gateway for a small fee. Direct payments from customers are possible without registration. Another "power steering" module can monitor your total own energy consumption and limit the charging power accordingly, so that it does not exceed the reserved power.

The EVECUBE C charging station is equipped with protective elements that ensure complete safety of the car and its crew. The most important of these is the built-in Type B circuit breaker and the RCD (FI) A-EV residual current device with 6mA DC current detection. This makes installation simple and saves considerable costs, as there is no need to add any other protective elements.

When placed in a public place, the charging station is equipped with a socket lock to prevent the cable from being stolen. Thanks to the extremely strong steel construction, the charging station is additionally protected against mechanical damage and contamination.

Orders, processing and delivery times take 4 - 6 weeks.

The charging station can be requested with a socket or with an integrated cable, with a pole or wall installation, according to the needs of each customer.

Technical Specifications

  • Connection:
    • integrated socket Duosida Type 2 female
    • integrated premium EV Expert coiled charging cable Type 2 with a length of 5 meters
  • IP44 protection
  • Maximum current: 32A (1 - 3 phases)
  • Maximum voltage: 400V
  • Maximum charging power: 22 kW
  • Drawer lock: Yes
  • OCPP 1.6: Yes
  • Authorization: Smart WebServer, RFID or EVE.Charge platform (payment system)
  • Charging status information: Yes
  • Electricity meter: Yes
  • Operating temperature range: -20 C to +50 C
  • Dimensions: Box - 280 x 200 x 120 mm, Column - 1100 x 200 x 120 mm
  • Cable length: 5 meters
  • Weight: 3,7kg
  • Color: brushed stainless steel

loxoneThe EVECUBE C charging station supports the extension to the LOXONE smart home, thanks to which you are always in full control of charging. You can see everything clearly in a customized visualization from which you can comfortably control charging. Information on the integration of your wallbox into the LOXONE system and downloadable files can be found here.



















webserverWebServer is developed in the Czech Republic and represents an advanced solution, both for home use and for public charging. Control is simple and intuitive. In addition, the extra power management module can monitor the total energy consumption in the home and limit the charging power accordingly so that it does not exceed the nominal reserved power.















evechrgThe simplest payment platform for charging stations that offers full customization to the operator's requirements. The payment system offers advantages such as simple login using a QR code, the ability to set your own tariffs and payment by credit card. You can find more information about the payment system here.





Security and certificates

All EVECUBE 22kW intelligent charging stations are tested to ensure their safety. Testing takes place individually. The protection box is certified at the IP44 level. Evecube meets the international standards IEC 61851-1 and IEC 62196-2. In the European Union, the charging station is certified by CE and TUV.

The charging station has a standard 36-month warranty. The extended warranty is 5 years.

Hi Andrew, yes for most, we have already...

Daniel, 15. 4. 2020 17:42:40

Hi Andrew, yes for most, we have already customers in Australia. I send you an invitation to LinkedIn to discuss more closer. Kind Regards, Daniel.

Use In Australia

andrew haning, 12. 4. 2020 16:05:52

Hi, I would like to know a few things about your products: 1. Can we use this product in Australia, is it certified electrically for safety compliance? 2. Can this be activated by a credit card reader, NFC/i.e. Paypass. 3. Can it be controlled remotely by an hard contact isolator is is their a smarter was to control it, i.e. via an API? 4. Can it be contacted via Modbus TCP?
