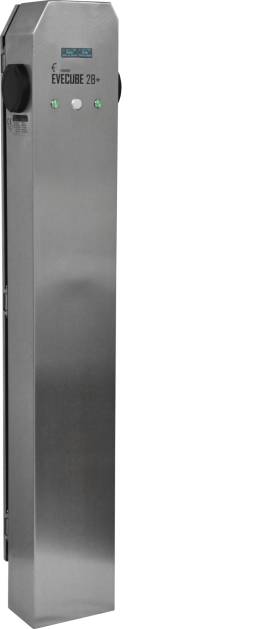

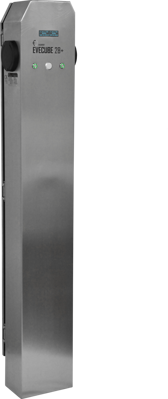

EVECUBE 2B+ - column AC charging station | 2 ports | 2x22kW (offline + display + PV surplus + RFID)

EVECUBE 2B+ - column AC charging station | 2 ports | 2x22kW (offline + display + PV surplus + RFID)

NEW MADE IN CZECH

The EVECUBE 2B+ is a high-performance second-generation column charger with two charging ports. The charging station is made of laser engraved stainless steel and allows charging of one or two plug-in hybrids (PHEV) or electric vehicles from 2x1.3kW up to 2x22kW. Thanks to the connection with your PV system, it can easily use the overflow to charge your electric car. The charger comes with a 5 year warranty!

2650 € incl. VAT

2190,08 €

Availability and price: On request

Producer: EV Expert

Product rating: 4.78/5 (9x)

Your rating:

  • We will help you with the selection

    We will help you with the selection

  • Preparing the installation

    Preparing the installation

  • We will arrange a revision

    We will arrange a revision

  • Warranty 5 years

    Warranty 5 years

Basic description

  • Extremely durable 2 x 22kW AC charging station suitable for private and public areas, made of high quality anti-corrosion stainless steel in a compact size for charging all electric vehicles from 3.7kW up to 22kW.

  • The EVECUBE 2B+ charging station is equipped with safety features that ensure the complete safety of the vehicle and crew. The most important of these are the built-in Type B current protector and the residual current device RCD (FI) A-EV with 6mA DC current detection. This makes installation simple and saves considerable cost as there is no need to add additional protective elements.

  • On the charging station, the charging current setting can be changed between 6A, 10A, 13A, 16A, 20A, 25A and 32A. The maximum charging power is 22 kW. The total charging time depends on the on-board charger of each electric vehicle.

  • Reliability

    Reliability

  • Power

    Power

  • Durability

    Durability

  • Made in CZ

    Made in CZ

SMART FEATURES THAT SAVE AND AUTOMATE

Connection of another appliance - smart control of surplus from HDO PV for charging with cheap current.

DYNAMIC POWER (LOAD) CONTROL

EV Expert Power steering Modbus technology with instant response dynamically controls the power of the charging station according to the current capabilities of your site. You are always assured that you are charging at the maximum available power while the circuit breaker is protected against equipment.

CLEAR DISPLAY

Information about the charging status and the selected charging mode is shown on the display. At the same time, the power consumption of all RFID card (chip) users is displayed.

EXTREME DURABILITY FOR THE HARSHEST ENVIRONMENTS

Thanks to the high-quality stainless steel body, a long service life of the charging station is ensured.

DATA PROTECTION

The data is stored directly in the charging station, so it is always under your control.

 EVECUBE B +













  • Compatible with your PV power plant. Thanks to several charging modes, you can set the charging according to your requirements.



                    • The charging station can be supplied with a socket or with an integrated cable.





CHARGING MODES FVE

Thanks to the new technology, the user can choose between three charging modes in cooperation with your photovoltaic power plant.





User management using RFID tags

The charging station has an RFID reader that allows you to register up to 64 RFID tags.rfid

It is mainly used in companies for employees or in commercial buildings. Each RFID

key stores information in the form of the number of kWh charged. The kWh can be

easily transferred to employees or guests staying in a hotel with a charging station.



Technical specifications



Wiring socket Duosida Type 2 /
Charging cable Phoenix Contact Type 2
Protection IP44
Maximum current 32A (1-3 phases)
Maximum voltage 400V
Maximum charging power 22kW / 2x22kW
Drawer lock Yes
OCPP No
Charging status information Yes
Display 1,3" OLED / 2x1,3" OLED
Electrometer No
Operating temperature range -20°C to +50°C
Dimensions 1300 x 200 x 150 mm
Weight 16-17 kg (with socket), 20-23 kg (with cable)







THE DISPLAY SHOWS:

THE DISPLAY SHOWS:
  • current charging current

  • total charged kWh

  • kWh for the last session

  • current charged kWh

  • statistics of total kWh charged

  • voltage on all phases

  • charging time

  • internal temperature of the charger





tlačítko

Safety and certificates

All EVECUBE smart charging stations are tested to ensure their safety. Testing is carried out individually. The protective enclosure is certified to IP44. EVECUBE meets the international standards IEC 61851-1 and IEC 62196-2 16A. In the European Union, the charging station is certified by CE and TUV.

The charging station comes with an extra 5-year warranty. Click here for more information.

If you are hesitating whether this charger with type 2 connector is suitable or whether it is better to ask for a charging station with socket only, you can search for your car in our database and find its connector type there, or you can contact us at any time.

If the station is not in stock, the delivery time after ordering is approximately 2 to 3 working days.

Power: 2 x 22 kW
Type of connection: Charging socket Type 2 (default) or cable Type 2
Socket Locking: Yes
OCPP: Yes, version 1.6
Authorization: Smar WebServer or EVE.Charge platform (payment system)
Charging status: Yes
Energymeter: Yes
Ingress protection rating: IP54
Temperature: from -20 C to +50 C
Dimension (variant without stand): 340 x 300 x 120 mm
Dimension (variant with stand): Box - 280 x 200 x 120 mm, Stand - 1100 x 200 x 120 mm
