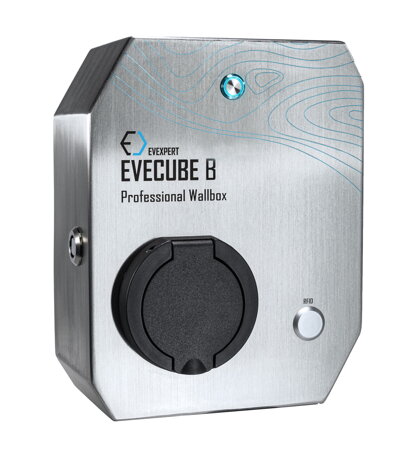

EVECUBE B+ 22kW AC charging station (offline + display + PV surplus + RFID)

EVECUBE B+ 22kW AC charging station (offline + display + PV surplus + RFID)

NEW MADE IN CZECH

New EVECUBE B+ charging station model with new features and a five-year warranty. This station is made of stainless steel, laser engraved and allows charging from 3.7 kW to 22 kW. The new feature is a display that informs you of the charging status of your electric car. The charging station can charge your electric car from the surplus of your solar power plant. It is available with a plug or with an integrated cable. The warranty for this station can be up to 5 years!

1390 € incl. VAT

1148,76 €

Availability and price: On request

Producer: EV Expert

Product rating: 3.91/5 (23x)

Your rating:

  • We will help you with the selection

    We will help you with the selection

  • Preparing the installation

    Preparing the installation

  • We will arrange a revision

    We will arrange a revision

  • Warranty 5 years

    Warranty up to 5 years

Basic description



  • Extremely durable 22kW AC charging station suitable for private and public areas, made of high quality anti-corrosion stainless steel in a compact size for charging all electric vehicles from 3.7kW up to 22kW.



  • The EVECUBE B+ charging station is equipped with safety features that ensure the complete safety of the vehicle and crew. The most important of these are the built-in Type B current protector and the residual current device RCD (FI) A-EV with 6mA DC current detection. This makes installation simple and saves considerable cost as there is no need to add additional protective elements.



  • On the charging station, the charging current setting can be changed between 6A, 10A, 13A, 16A, 20A, 25A and 32A. The maximum charging power is 22 kW. The total charging time depends on the on-board charger of each electric vehicle.

  • Reliability

    Reliability

  • Power

    Power

  • Durability

    Durability

  • Made in CZ

    Made in CZ

SMART FEATURES THAT SAVE AND AUTOMATE

Connection of another appliance - smart control of surplus from HDO PV for charging with cheap current.

DYNAMIC POWER (LOAD) CONTROL

EV Expert Power steering Modbus technology with instant response dynamically controls the power of the charging station according to the current capabilities of your site. You are always assured that you are charging at the maximum available power while the circuit breaker is protected against equipment.

CLEAR DISPLAY

Information about the charging status and the selected charging mode is shown on the display. At the same time, the power consumption of all RFID card (chip) users is displayed.

EXTREME DURABILITY FOR THE HARSHEST ENVIRONMENTS

Thanks to the high-quality stainless steel body, a long service life of the charging station is ensured.

DATA PROTECTION

The data is stored directly in the charging station, so it is always under your control.



 smart offline wallbox

  • Compatible with your PV power plant. Thanks to several charging modes, you can set the charging according to your requirements.



  • The charging station can be supplied with a socket or with an integrated cable.





CHARGING MODES FVE

Thanks to the new technology, the user can choose between three charging modes in cooperation with your photovoltaic power plant.





User management using RFID tags

rfid

The charging station has an RFID reader that allows you to register up to 64 RFID tags.

 It is mainly used in companies for employees or in commercial buildings. Each RFID

key stores information in the form of the number of kWh charged. The kWh can be

easily transferred to employees or guests staying in a hotel with a charging station.







Technical specifications




Wiring

socket Duosida Type 2 /

Charging cable Phoenix Contact Type 2

Protection IP44
Maximum current 32A (1-3 phases)
Maximum voltage 400V
Maximum charging power 22kW
Drawer lock Yes
OCPP No
Charging status information Yes
Display 1,3" OLED
Electrometer No
Operating temperature range -20°C to +50°C
Dimensions 220 x 200 x 120 mm
Weight 3,7kg







THE DISPLAY SHOWS:

THE DISPLAY SHOWS:
  • current charging current

  • total charged kWh

  • kWh for the last session

  • current charged kWh

  • statistics of total kWh charged

  • voltage on all phases

  • charging time

  • internal temperature of the charger





I'm interested

Safety and certificates

All EVECUBE smart charging stations are tested to ensure their safety. Testing is carried out individually. The protective enclosure is certified to IP44. EVECUBE meets the international standards IEC 61851-1 and IEC 62196-2 16A. In the European Union, the charging station is certified by CE and TUV.

This charging station can be covered by a superior warranty of up to 5 years. For more information, click here.

If you are hesitating whether this charger with type 2 connector is suitable or whether it is better to ask for a charging station with socket only, you can search for your car in our database and find its connector type there, or you can contact us at any time.

If the station is not on stock, the delivery time after ordering is approximately 1 to 2 weeks.
