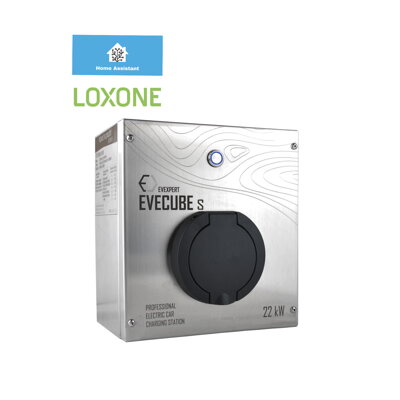

EVECUBE S - 22kW AC charging station (Smart WebServer + RFID)

EVECUBE S - 22kW AC charging station (Smart WebServer + RFID)

Second generation of the charging station from EV Expext - EVECUBE S - is made of high-quality anti-corrosion stainless steel in a compact size for charging of all electric cars and hybrids with an output of up to 22 kW. The state-of-the-art Web Server charging control system allows the charger to be connected to the Internet, to select the setting that best corresponds to the electric vehicle being charged, or to control it using an RFID tag. It can be requested with a socket or with an integrated cable. The warranty is 5 years!

1615 € incl. VAT

1334,71 €

Ask without obligation

Add to Favourites

Add to list

You need to login first

Product question

Watchdog

You need to login first

Availability and price: On request

Producer: EV Expert

Product rating: 4.81/5 (37x)

Your rating:

Charging with the EVECUBE S smart home charging station is up to 5 times faster than charging from a standard SCHUKO socket. The smart charging station is equipped with an intelligent WebServer on your local IP address, including a web application for easy remote control, statistics and its management. Possibility to set time, power, time of day, according to the customer tariffs. The maximum charging power is 22 kW.

The Webserver system is developed in the Czech Republic and represents an advanced solution for both home use and public charging. Control is simple and intuitive. In addition, the extra module can monitor the total energy consumption of the household and limit the charging power accordingly, so that it does not exceed the nominal reserved power input.

The smart charging station is equipped with protective elements that ensure complete safety of the car and its crew. The most important of these is the built-in Type B circuit breaker and the RCD (FI) A-EV residual current device with 6mA DC current detection.

When placed in a public place, the charging station is equipped with a socket lock to prevent the cable from being stolen. Thanks to the extremely strong steel construction, the charging station is additionally protected against mechanical damage and contamination.

Orders, processing and delivery times are 4 - 6 weeks.

The charging station can be requested with a socket or with an integrated cable, with a pole or for wall mounting itself, according to the needs of each customer.

Technical Specifications

  • Connection:
    • integrated socket Duosida Type 2 female
    • integrated premium EV Expert coiled charging cable Type 2 with a length of 5 meters
  • IP44 protection
  • Maximum current: 32A (1 - 3 phases)
  • Maximum voltage: 400V
  • Maximum charging power: 22 kW
  • Drawer lock: Yes
  • OCPP: No.
  • Authorization: Smart WebServer or stainless steel RFID reader
  • Charging status information: Yes
  • Electricity meter: No.
  • Operating temperature range: -20 C to +50 C
  • Dimensions: 220 x 200 x 120 mm (smallest charging station on the market)
  • Cable length: 5 meters
  • Weight: 3,7kg
  • Color: brushed stainless steel

loxoneThe EVECUBE S charging station supports the extension to the LOXONE smart home, thanks to which you are always in full control of charging. You can see everything clearly in a customized visualization from which you can comfortably control charging. Information on the integration of your wallbox into the LOXONE system and downloadable files can be found here.











webserverWebServer is developed in the Czech Republic and represents an advanced solution, both for home use and for public charging. Control is simple and intuitive. In addition, the extra power management module can monitor the total energy consumption in the home and limit the charging power accordingly so that it does not exceed the nominal reserved power.

Security and certificates

All EVECUBE 22kW charging stations are tested to ensure their safety. Testing takes place individually. The protection box is certified at the IP44 level. Evecube meets the international standards IEC 61851-1 and IEC 62196-2 16A. In the European Union, the charging station is certified by CE and TUV.

The smart charger has a standard warranty of 60 months.
